3—Roll Pins 3/8” x 1-1/2”(Used to hold points) |
5/8” x 4” Grade 8 hub bolts (N. fine threads) and 5/8” lock nut |
Install 2 of 5/8” lock washers for spacing the hub left side (ripple coulter) as shown and 3 for right side traction coulter hub |
Install 1 of 5/8” flat washer on each side of frame as shown for mounting the hub |
5/8” lock nut |
Hub for coulter |
correct mounting of coulter hub |
18 |
Hub Bearing 2 for each hub Part No. SP500 Note: Install with shoulders to outside. |
Covering blades 2 of Part No. TK124
Bearing No. SP50001 |
Press Wheel Part No. TK375R
Bearing for Press Wheel Part No. SP5001 |
Fertilizer Tube and Top Seed Tube 1” ID, Part No. 4135 |
Bottom Seed Tube 11-1/2” Long Part No. 15018628 |
3 |
Cleaning Pick Part No. 2015 |
Right Hand Traction Coulter Part No. TK127 |
Left Hand Ripple Coulter Part No. TK6 |
26 |
Coulter Frame 2015 |
Bolt Blade to Hub Grade 8 5/16 x 1½ and lock nut |
Coulter Hub TK81 |
G80 Spring Trip |

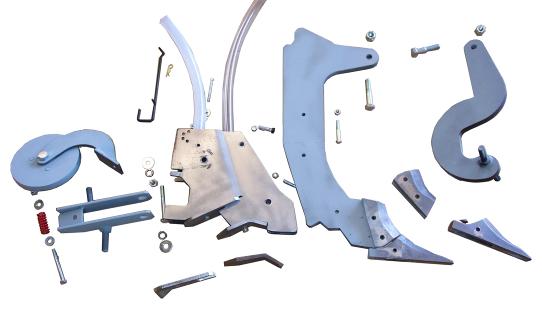

Plant-o-vator parts breakdown |
1 |
Wheel Arm, TK0266 |
2 |
Rubber Press Wheel, TK375R |
3 |
Rear Coulter Arm, TK0263-1 |
4 |
Rear Mole Plow, TK136-1 |
5 |
Front Mole Plow, TK137 |
6 |
Pipe Bushing, TK166 |
7 |
Side Plate Assembly, TK0345A |
8 |
Point, TK4APT |
9 |
Top for Point, TK4ASH |
19 |
Shear Bolt 3/8” x 2” |
20 |
Nut 3/8” Nyloc |
21 |
Nut 5/8” Nyloc |
22 |
Bolt 5/8” x 3” |
23 |
Side Plate Bolt 3/8” x 1-3/4” |
24 |
Nut 3/8” |
25 |
Bolt 5/8” x 1-1/2” Std |
26 |
5/8”x4” Mounting Bolt & Lock Nut |
10 |
Front Coulter Arm, TK12-2 |
11 |
Shank, TK1-4 |
12 |
Seed Depth Adjustment Rod, TK142-2 |
13 |
Flat Washer 1/2” |
14 |
Nut 1/2”Nyloc |
15 |
Flat Washer 3/8” |
16 |
Spring, 886396M1 |
17 |
Bolt 3/8” x 3-1/2” |
18 |
Bolt 1/2” x 3-1/2” |
